Quick Details

  • Condition: New
  • Mixer Type: Planetary Mixer
  • Product Type: sealant and adhesive, sealant
  • Application: Viscous Fluid
  • Additional Capabilities: Milling
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: GMK
  • Model Number: QLF-3000L
  • Max. Loading Capacity: 3000L, related to the specific mode of mixer
  • Voltage: Customer Required
  • Power(W): 50HZ/60HZ
  • Certification: ISO
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Name: QLF-3000L High efficiency silicone rubber power mixer
  • Norminal capacity: 2.5L~6000L
  • Vacuum degree: -0.098Mpa
  • Discharge mode: Plug/No neck ball valve
  • Vessel heating tyoe: electric,steam,oil heating
  • Rotation Speed r/min: High speed:0~980r/min
  • Slow Shaft: Two set ribbons, two set bottom scraper and one set wall scraper.
  • Total Power(KW): 164kw

Packaging & Delivery

Packaging Details: standarad export package for QLF-3000LHigh efficiency silicone rubber power mixer
Delivery Detail: 75 days after the deposit payment

QLF-3000L  High efficiency silicone rubber power mixer

Product Description



1,cooperating with ITW ,Soudal ,Momentative ,Shinetsu
2,with patent
3,one year guaranteed
4,Siemens and ABB parts

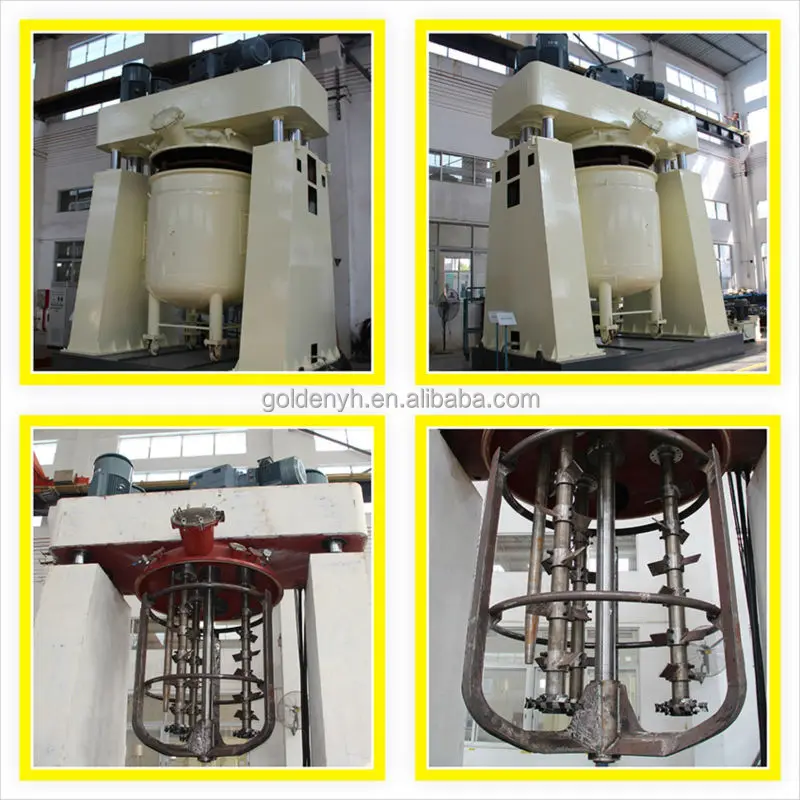

QLF dispersing power mixer is a kind of high-efficiency multifunctional mixer already proved by practice. It can meet the needs of users to quickly change working requirements during operation, and can custom-make various kinds of mixer to meet different viscosity materials on clients’ requirements. Working capacity range from 5L to 3500L, power is designed according to viscosity of materials. It is widely used in silicone sealant, adhesive, cosmetics, chemical products, battery, foodstuff, pharmacy and plastic industries, etc. Dispersing power mixer has 3-4 different stirrers inside of vessel, including one low-speed stirrer revolving around vessel axis, and the other 2-3 high-speed stirrers rotating around its own axis at different high speeds to achieve complicated movement of strong shearing and kneading for materials inside of vessel.



The E-shaped scraper inside the equipment revolves around the vessel axis to scrape the materials adhering to wall and bottom for ideal mixing effects. The equipment is well sealed, can be vacuumized, with excellent exhaust and bubble removal effects. The vessel cover can be hydraulically lifted, and vessel body can move freely for ease of operation.



Model

Nominal Capacity

Vacuum Degree

Vessel type

Discharge mode

QLF-2.5

2.5L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -5

5L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -10

10L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -20

20L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -50

50L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -100

100L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -200

200L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -300

300L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -500

500L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -1000

1000L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -1500

1500L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve

QLF -3500

3500L

-0.098MPa

Electric,steam, oil heating/oil, water cooling jacket

Plug/No neck ball valve





1

Vacuum Degree

-0.098MPa

2

Structure

Gantry Type(DLHL)

3

Rotation Speed r/min

Revolution:0~42r/min,Rotation:0~66r/min( Frequency-converting);

High speed:0~980r/min( Frequency-converting).

4

Slow Shaft

Two set ribbons, two set bottom scraper and one set wall scraper.

5

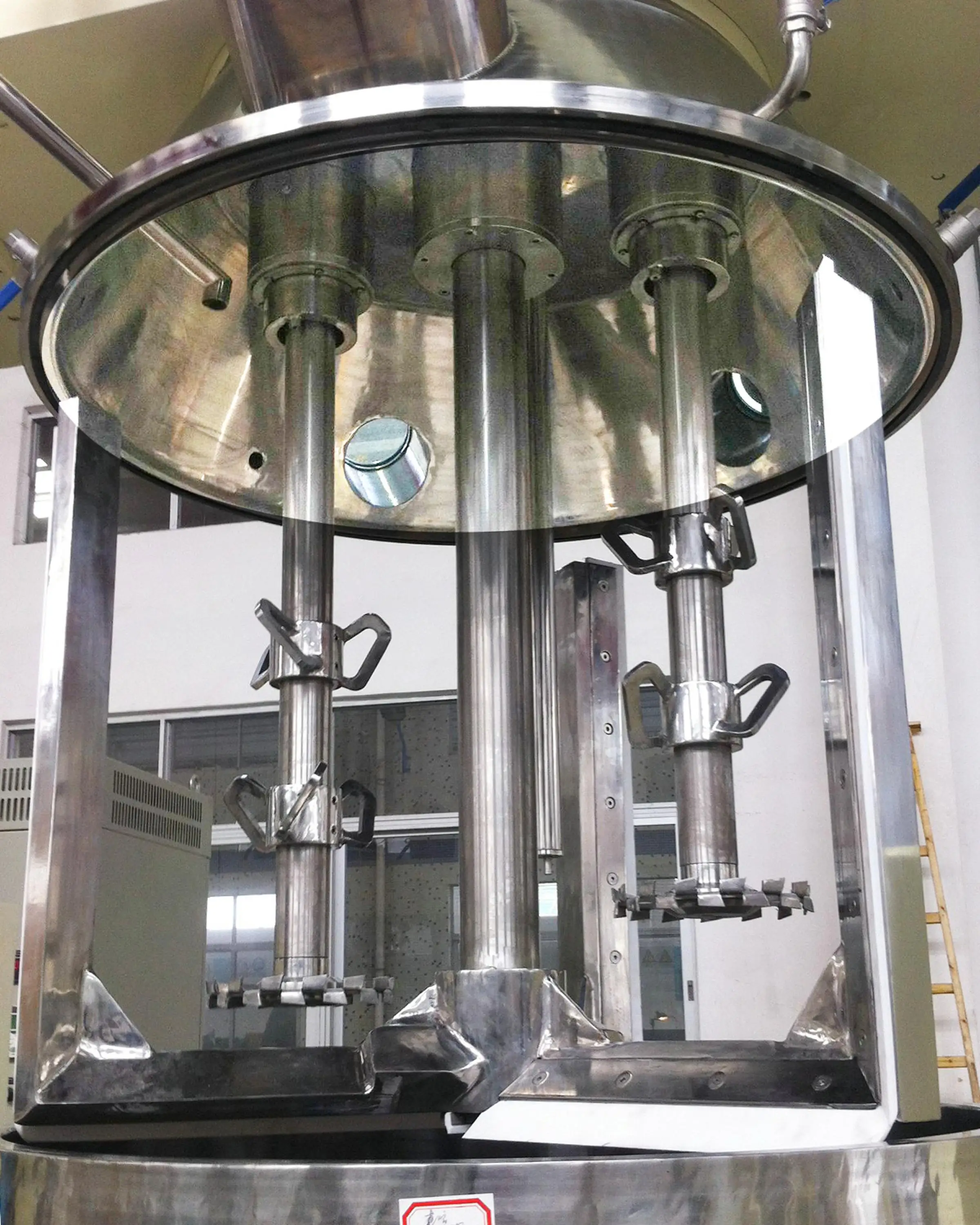

Fast shaft

Single fast shaft with two Φ250 dispersion disk structure, no hole in the middle of dispersion disk ( or with two above butterfly stirrers )

6

Lifting mode of vessel cover

Hydraulic

7

Lifting height of vessel cover

1200mm

8

Mode of Temperature Measurement

Temperature detector fixed on scraper, rotation electric conduction device inside, temperature detector contacting material, it is exact for measurement, the patent no. of this device is Z200520112283.5.

9

Location of vessel

Adopt guiding device for pushing and location way of arc plate, lugs structure on the vessel, ensure the middle location.

10

Lock of vessel

Mechanical manual lock

11

Total Power(KW)

164kw

12

Power Supply

AC:3*380V,50HZ

13

Dimension

L2720 W1750 H4480(the higest)

14

Weight(kg)

Abt 8500kgs









Packaging & Shipping









Our Services









Company Information



Established in 2002, Foshan Golden Milky Way Intelligent Equipment Co.,LTD(GMK)covers an area of

19,253squaremeters. Company existing staff 310 people,of which 101 people are technical personnel with

high education background (accounting for 32.58% of total staff), 38 people are whole-time researcher ( accounting for 12.26%of total staff).



GMK company mainly manufacture high-tech intelligent complete sets of equipment, including Silicone

Sealant Continuous Automatic Production Line, HTV Continuous Automatic Production Line, Planetary

dispersing power mixer, Static mixer, Automatic cartridge filling machine, Lithium battery pole

sheet coating machine, Lithium battery pole sheet rolling machine and so on. GMK company

has a good reputation in Fluorosilicone industry, Construction Sealant industry, Solar Power

and Wind Power specialized Sealant industry. Domestic market share in silicone sealant industry

reaches 25%.



GMK company is an innovation based company. It possesses 10 authorized invention patents, 31 authorized

utility patents, copyright of 7 computer software, 1 national key new product and 14 new and high-tech

products of Guangdong province.
